Assemble EchoKit DIY

Before using your EchoKit, you’ll need to assemble its four components:

  • ESP32-S3 development board
  • Extension board (with audio and microphone module)
  • Mini speaker
  • 1.54" LCD screen

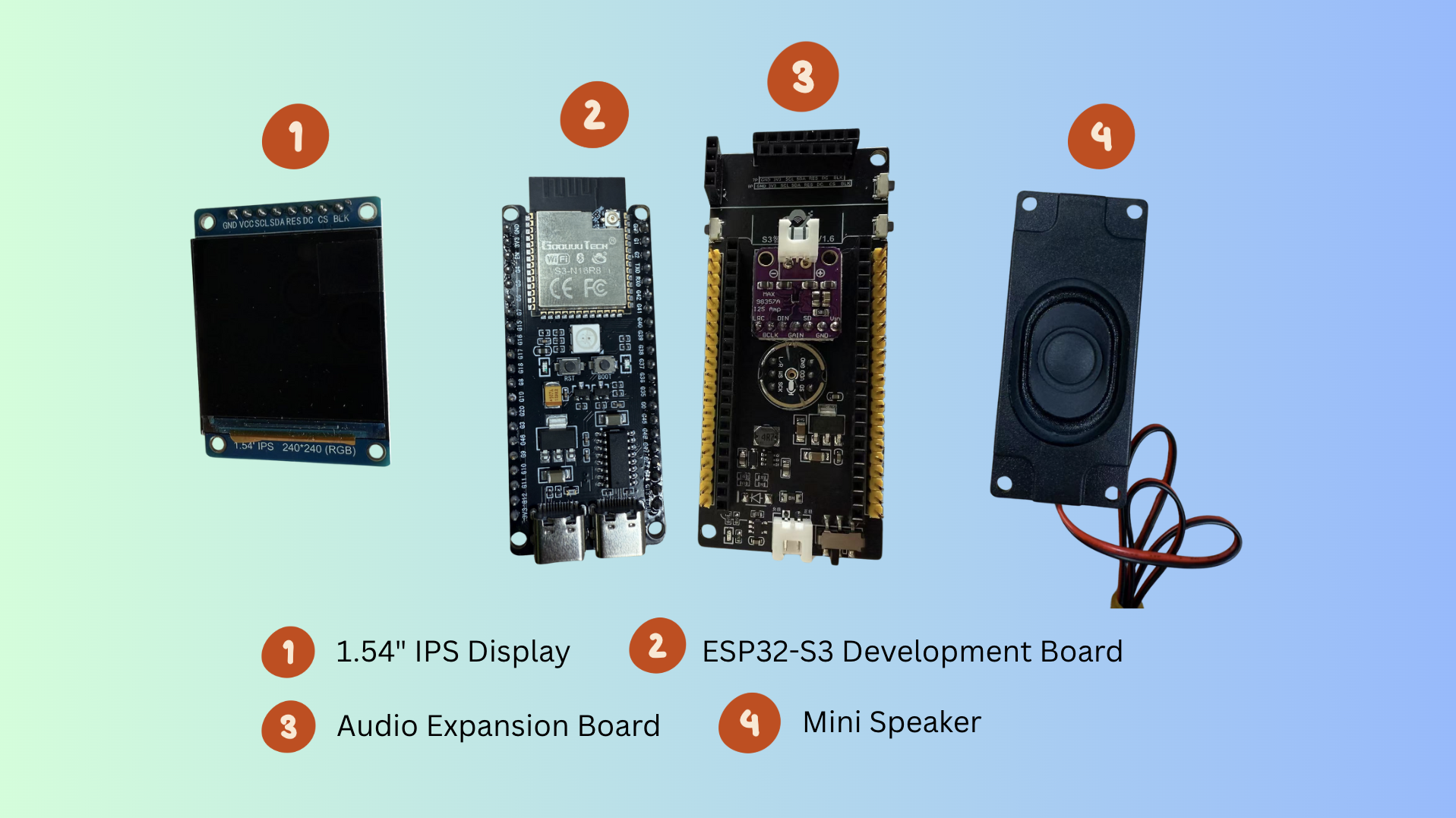

EchoKit Components

Steps to Assemble​

  1. Connect the mini speaker
    Plug the mini speaker into the audio module located in the middle of the extension board.

  2. Attach the ESP32-S3 board
    Mount the ESP32-S3 development board onto the extension board.

  3. Insert the LCD screen
    Plug the 1.54" LCD screen into the slot at the top of the extension board.

How to Assemble Echokit

✅ You’ve now assembled your EchoKit!

Next, continue to Flash the Firmware.
